GE combo washer no power problem. Repair in Chicago Uptown.

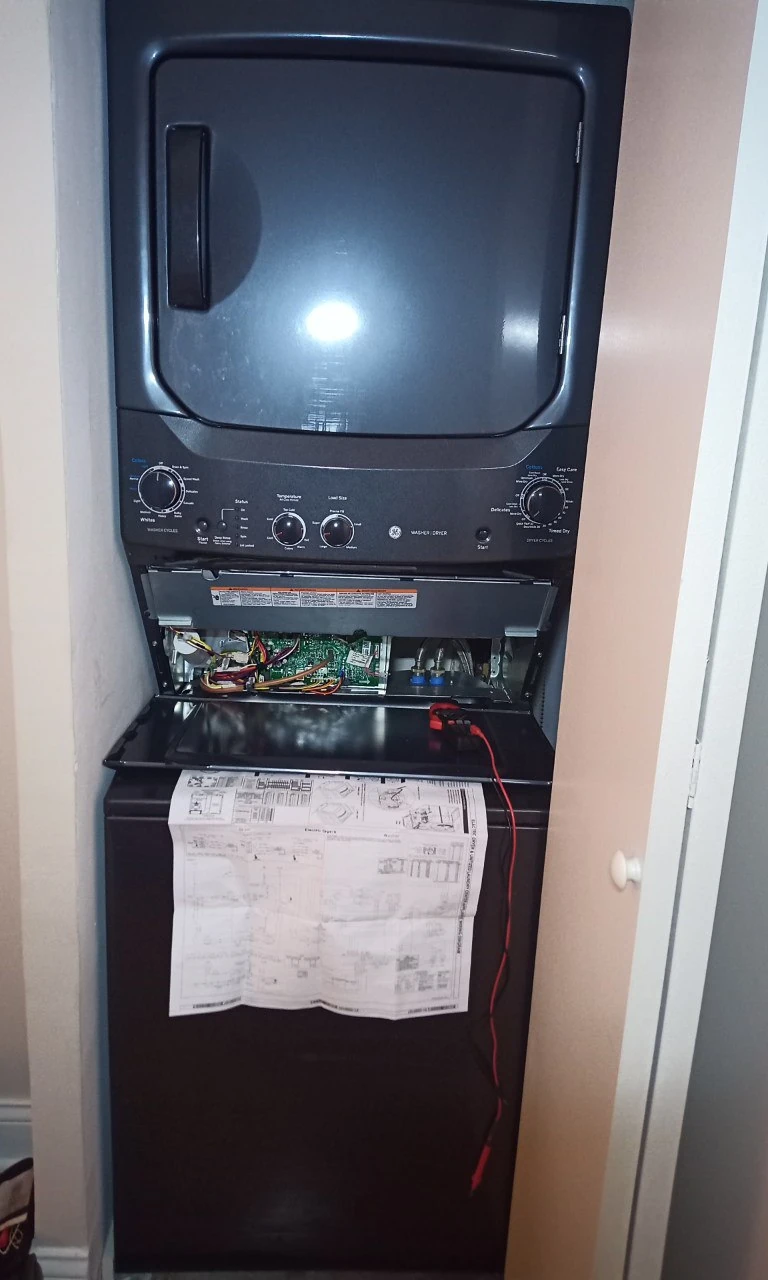

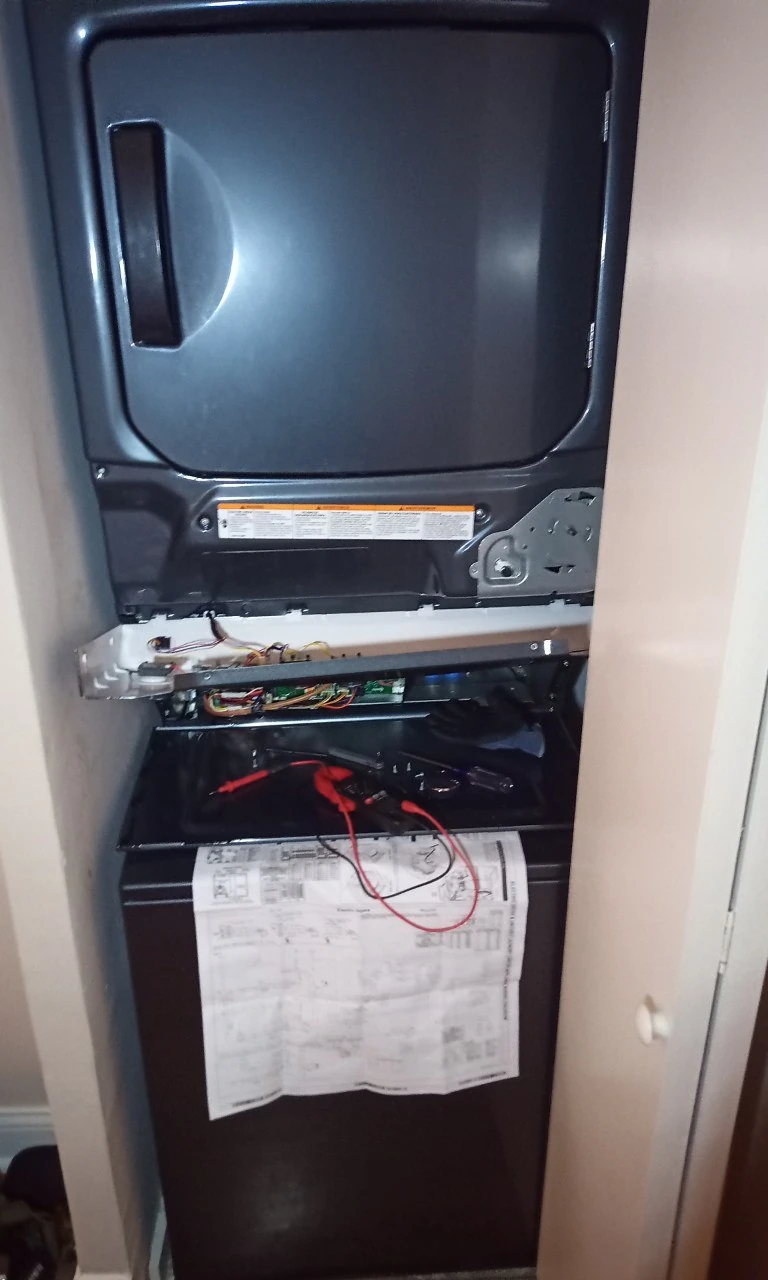

Today another one GE electronic components problem. Combo washer and dryer. The model is GUD27ESPM1DG. Manufactured in 2024. It's around 6 moths old, dryer works but washer part have no any reaction to any control. Like no power at all.

I checked all the washer wire connections. Everything is fine. Nothing suspicious. Only one wire holder clamp is not secured in place because the clamp was installed at the wrong distance from the hole.

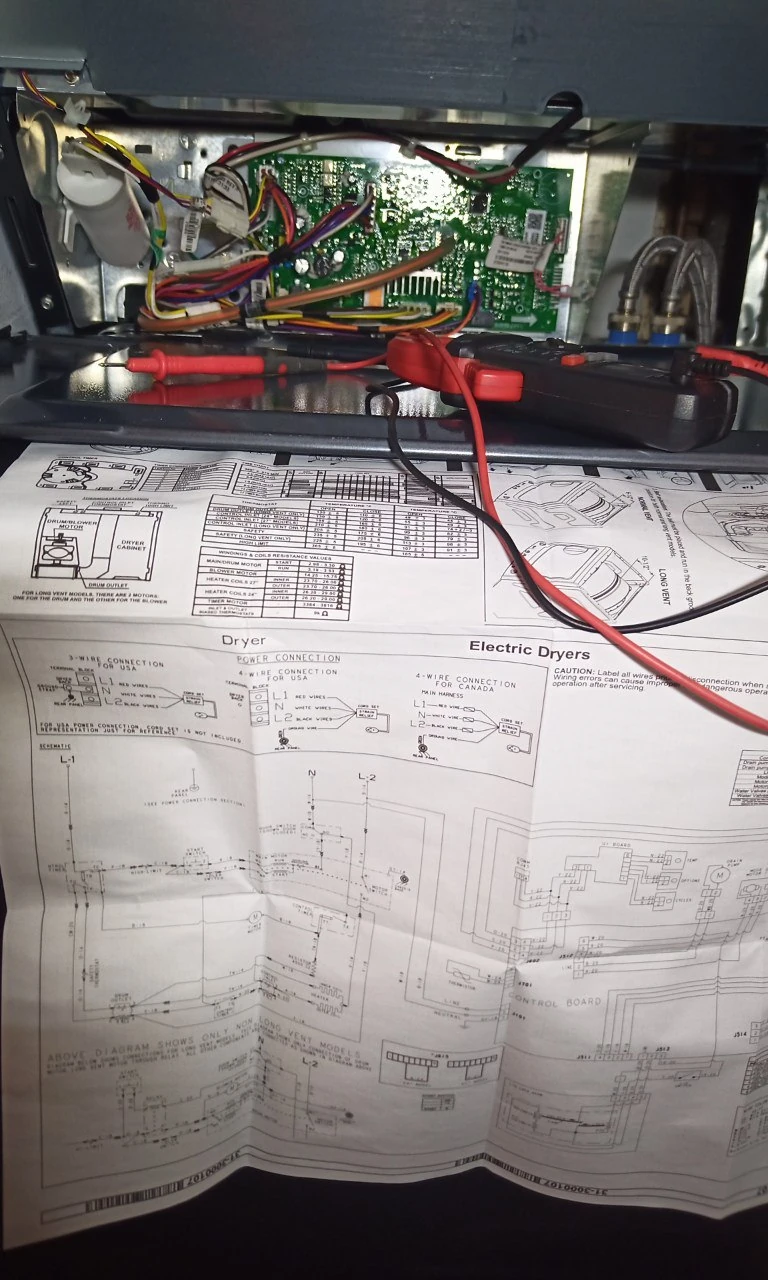

Power is being supplied to the control board, measured 115 volts on input terminal pins, but the board appears to be disconnected. Finally, disconnect the power connector from the control and connect it back. The green diode on the board will start blinking and everything will start working as it should.

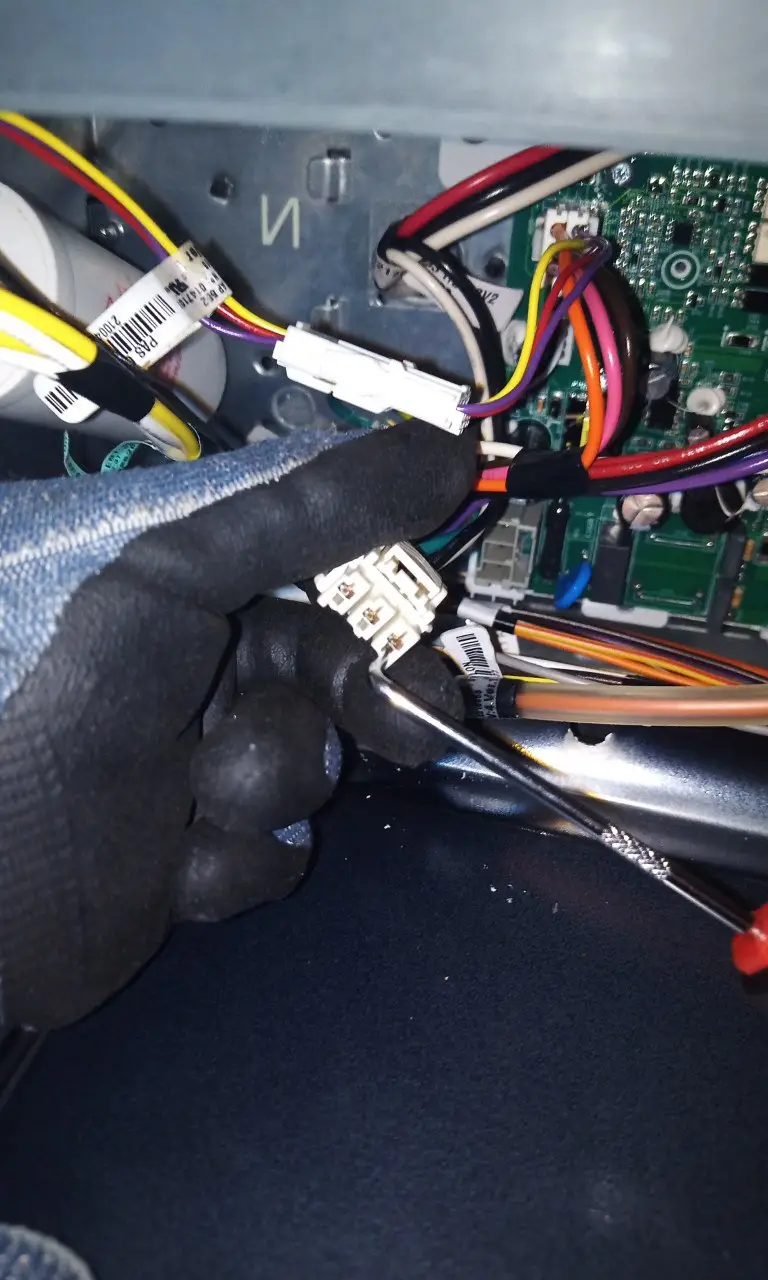

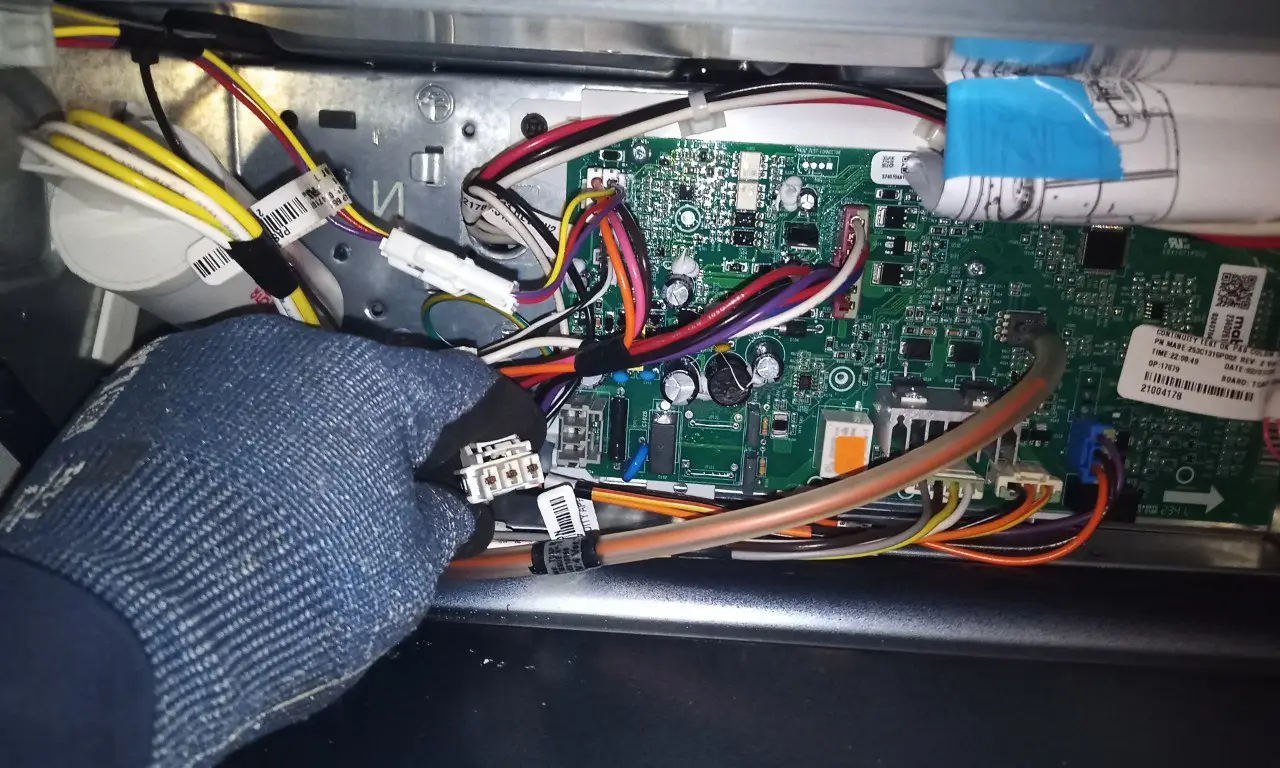

After looking carefully find a problem inside a control board power connector. When washer operates it has some vibration. Connector contacts very poor quality and loosen with time.

So solution is to adjust contacts dimensions inside connector.
